HARDWARE FEATURES

Interface
1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+

Button
Reset

Power Supply
802.3at/bt PoE

Max. Power Consumption
802.3bt:
EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)
US: 25.4W (bt type3: af PSE out; bt type4: at PSE out);
802.3at:
EU: 20.2W (PSE disabled)
US: 25.4W (PSE disabled)
Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input.

Dimensions ( W x D x H )
9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit)

Antenna
4× External Dual-Band Omni Antennas
2.4 GHz: 6.0 dBi
5 GHz: 6.0 dBi

Bluetooth
Yes

Weatherproof Enclosure
IP68

Mounting
Wall/pole mouting (kits included), supporting horizontal ±45° adjustment
Optional bracket accessory APM-110: Supports vertical ±90°, horizontal ±45° adjustment
Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment

(Note: Optional bracket accessories need to be purchased separately)

WIRELESS FEATURES

Concurrent Clients
1,000+ *

Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax

Frequency
5 GHz, and 2.4 GHz

Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 1148 Mbps

Wireless Functions
1024-QAM
Mesh §
Seamless Roaming(802.11k/v/r) §
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Automatic Channel Assignment (Adjust transmit Power on dBm)
Transmit Power Control
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDs:16 (8 for each band)
MU-MIMO (4 × 4 MU-MIMO DL/UL)
UL/DL OFDMA
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP

Wireless Security
VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
Wireless Isolation between Clients
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP); < 30 dBm (5 GHz, band 3, EIRP);
FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3)

Management Features

Omada App
Yes

Restore & Backup
Yes

Firmware update via Web
Yes

NTP
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller

Cloud Access
Yes. Require the use of an Omada controller.

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1, v2c, v3

SSH
Yes

Web-based Management
Yes

OTHERS

Certification
CE, FCC, RoHS

Package Content

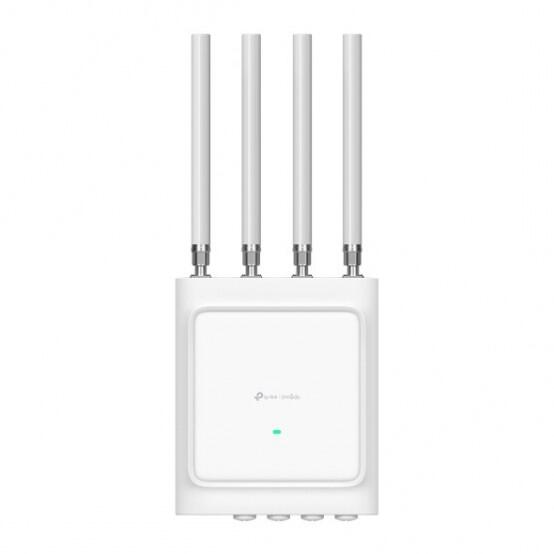

EAP668-Outdoor HD
4× External Dual-Band Omni Antennas
Installation Guide
Mounting Kit
Waterproof Kit

Environment
Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
Operating Humidity: 10%–90% non-condensing;
Storage Humidity: 5%–90% non-condensing
